Yanmar Excavators

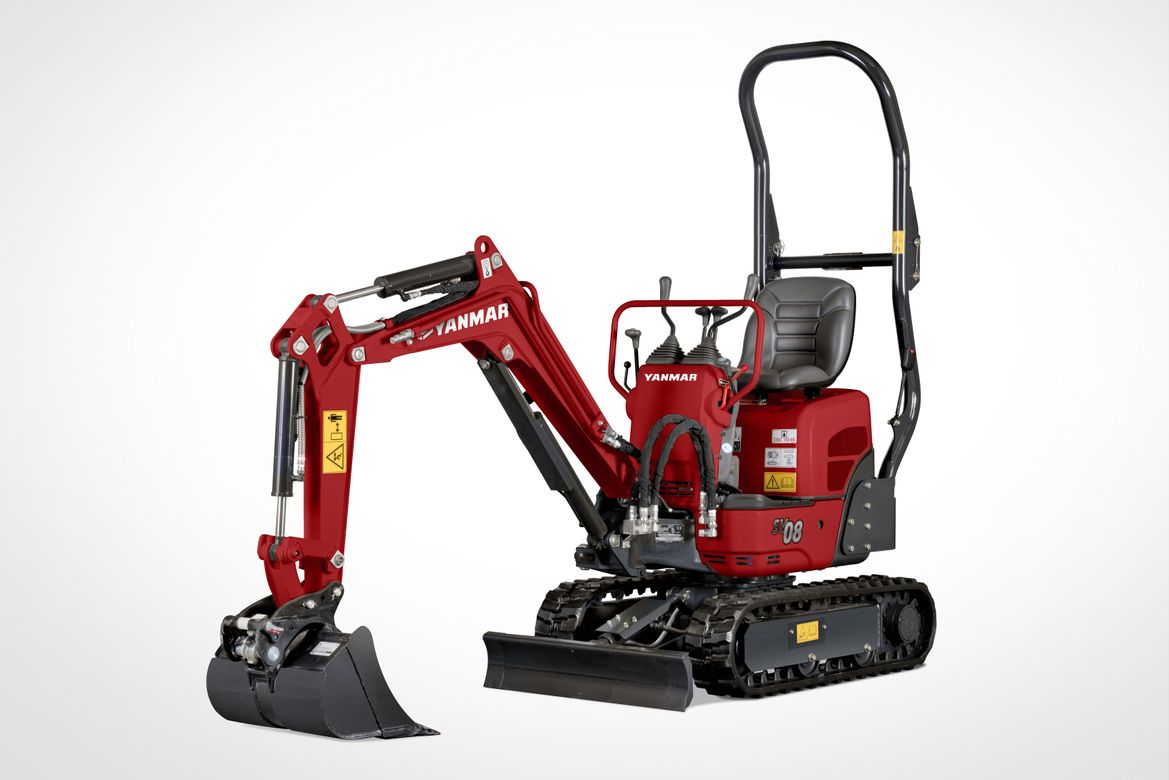

Yanmar SV08

Yanmar SV08
OPERATING WEIGHT1035 kg
TRANSPORT DIMENSIONS3050 x 730 x 1550 mm
DIGGING DEPTH1500 mm
DUMPING HEIGHT1950 mm
REAR SWING RADIUS725 mm
DIGGING FORCE (ARM/BUCKET)5.88 / 9.95 kN
TRAVELLING SPEED1.8 km/h

2 cylinders, 507 cm³

YANMAR DIESEL ENGINE7.5 kW / 10.2 HP / 2400 rpm

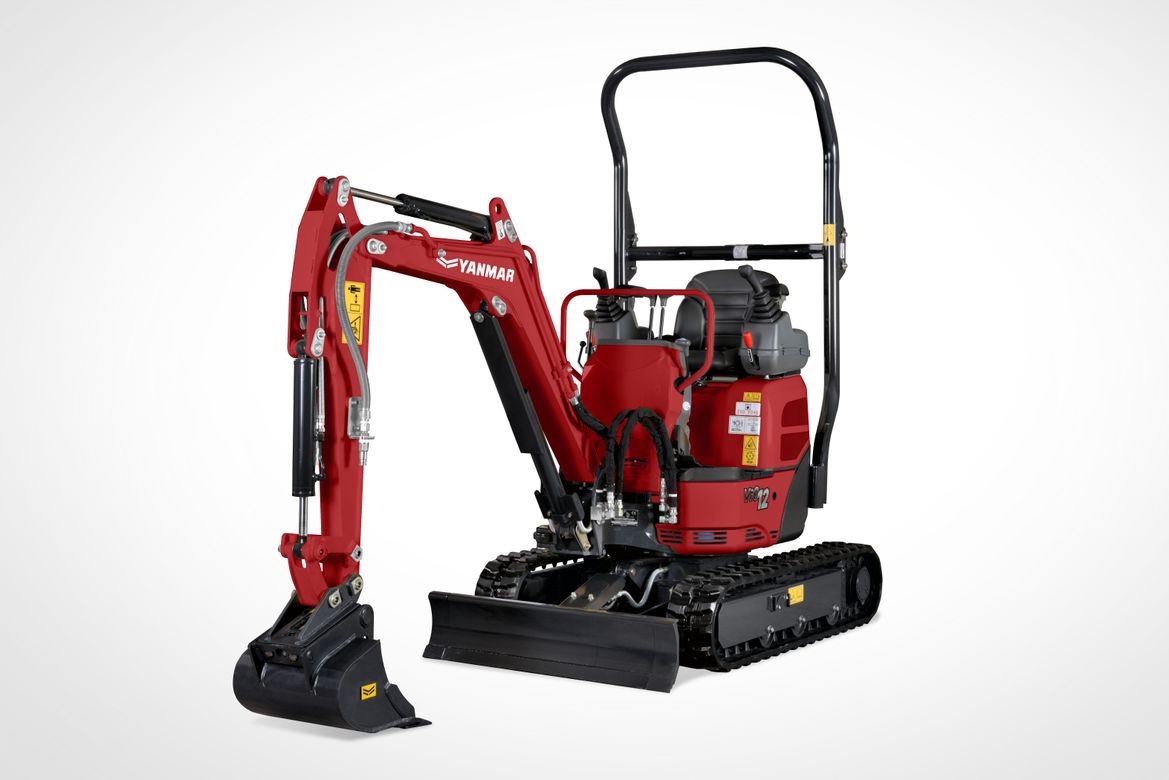

Yanmar VIO12

Yanmar VIO12
OPERATING WEIGHT

1235 kg

TRANSPORT DIMENSIONS

3040 x 1000 x 1420 mm

DIGGING DEPTH

2050 mm

DUMPING HEIGHT

2370 mm

REAR SWING RADIUS

650 mm

DIGGING FORCE (ARM/BUCKET)

570 / 1400 kgf

TRAVELLING SPEED

2,1 to 4 km/h


3 cylinders, 854 cm3,

YANMAR DIESEL ENGINE

9,2 kW / 12,5 HP / 2000 rpm

Yanmar SV15

Yanmar SV15
OPERATING WEIGHT

1590 kg [Canopy]

TRANSPORT DIMENSIONS

1685 kg [Cabin]

3450 x 980 x 2240 mm

2005 mm

DIGGING DEPTH

2330 mm [Long arm]

2470 mm

DUMPING HEIGHT

2575 mm [Long arm]



REAR SWING RADIUS

980 mm

DIGGING FORCE (ARM/BUCKET)

7,4 / 12,9 kN

TRAVELLING SPEED

1,7 / 3,3 km/h



3 cylinders, 854 cm3

YANMAR DIESEL ENGINE

12.1 kW / 16.5 HP / 2600 rpm

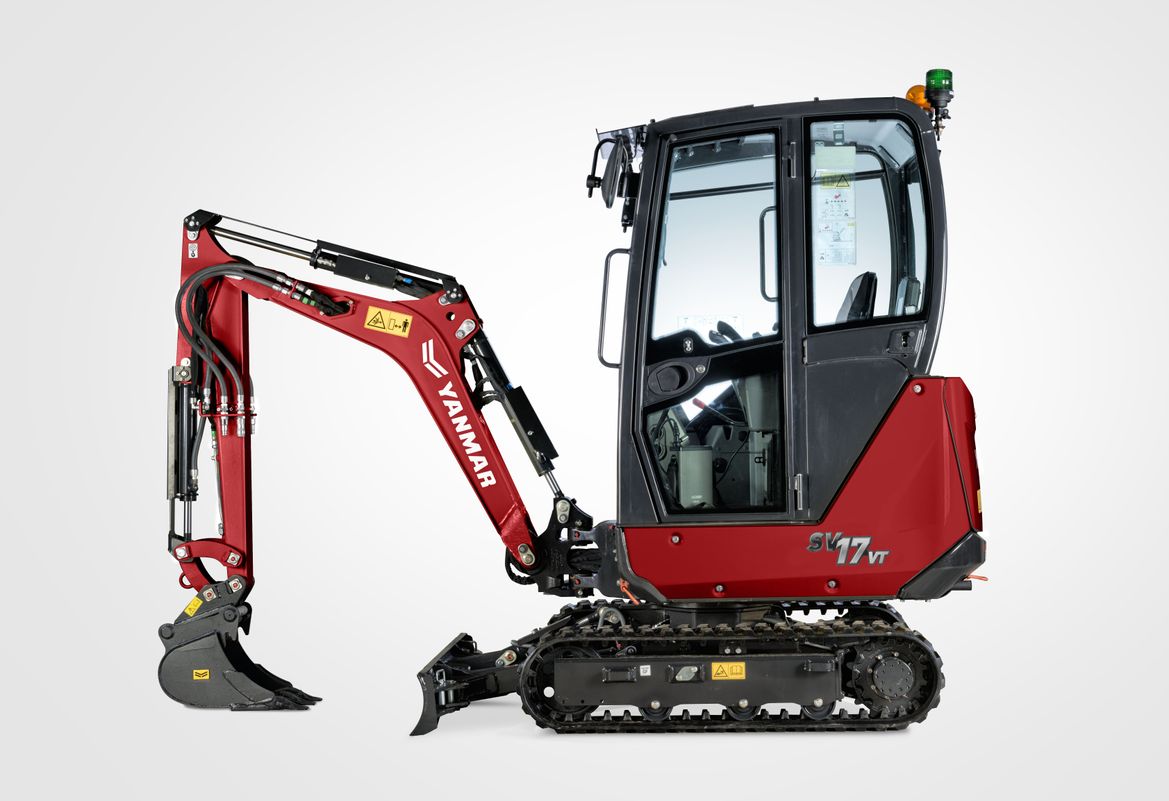

Yanmar SV17

Yanmar SV17
OPERATING WEIGHT

1700 kg [Canopy]

TRANSPORT DIMENSIONS

1790 kg [Cabin]

3660 x 980 x 2240 mm

DIGGING DEPTH

2470 mm

DUMPING HEIGHT

2720 mm



REAR SWING RADIUS

980 mm

DIGGING FORCE (ARM/BUCKET)

9,9 / 16 kN

TRAVELLING SPEED

2,2 / 4,1 km/h



3 cylinders, 854 cm3

YANMAR DIESEL ENGINE

9,5 kW / 12,9 HP / 2100 tr/min

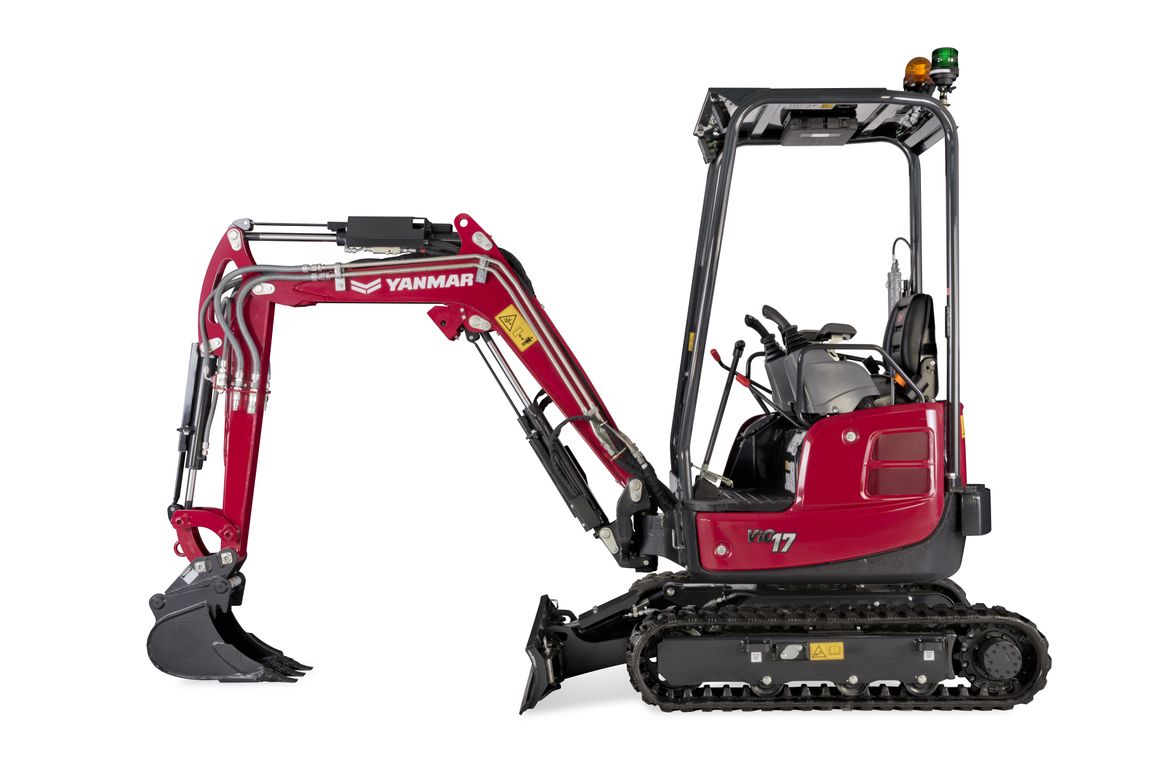

Yanmar VIO17

Yanmar VIO17
OPERATING WEIGHT

1765 kg

TRANSPORT DIMENSIONS

3450 x 950 x 2370 mm

DIGGING DEPTH

2200 mm

DUMPING HEIGHT

2630 mm


REAR SWING RADIUS

640 mm

DIGGING FORCE (ARM/BUCKET)

8.53 / 15.2 kN

TRAVELLING SPEED

2.1 – 4.3 km/h


3 cylinders, 854 cm3

YANMAR DIESEL ENGINE

10.1 kW / 13.7 HP / 2200 rpm

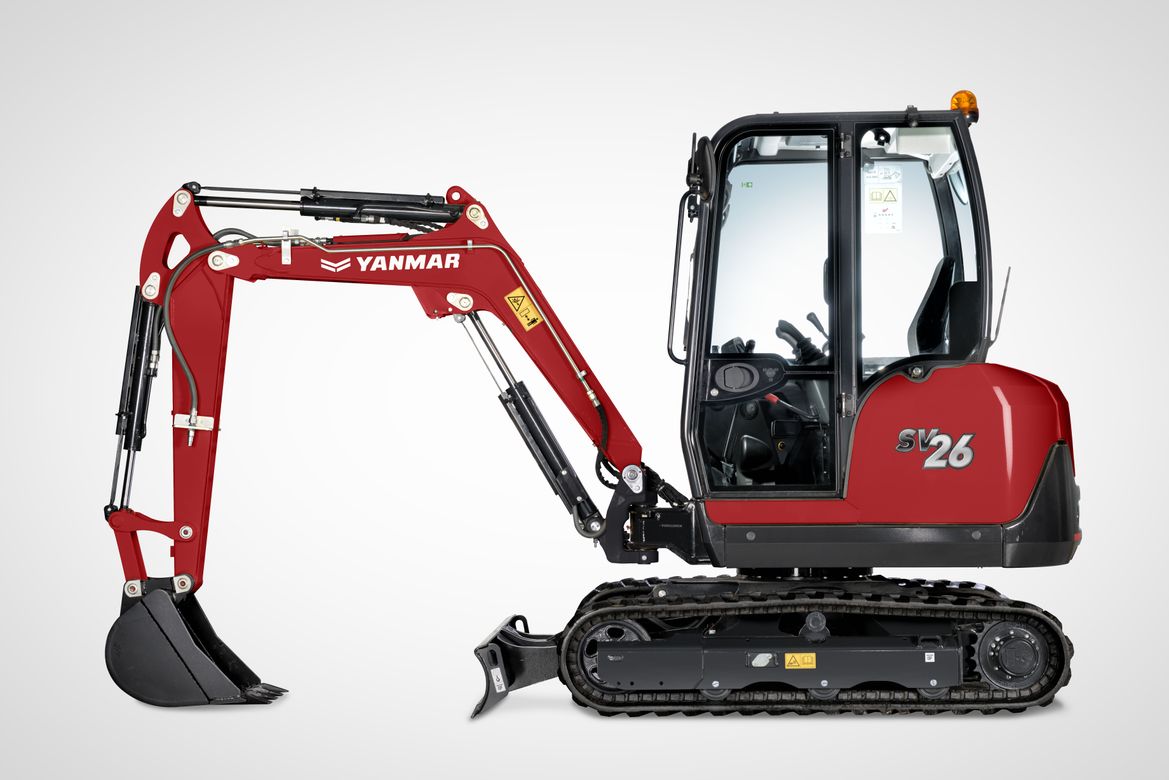

Yanmar SV26

Yanmar SV26
OPERATING WEIGHT

2600 kg [rubber crawlers / canopy]

2710 kg [steel crawlers / canopy]

2740 kg [rubber crawlers / cabin]

TRANSPORT DIMENSIONS

2850 kg [steel crawlers / cabin]

4250 x 1550 x 2435 mm

2735 mm

DIGGING DEPTH

2805 mm [long arm]

DUMPING HEIGHT

2835 mm


REAR SWING RADIUS

2995 mm [long arm]

DIGGING FORCE (ARM/BUCKET)

1160 mm

14.71 / 24.52 kN

TRAVELLING SPEED

2.9 – 4.8 km/h


3 cylinders, 1331 cm³

YANMAR DIESEL ENGINE

17.6 kW / 23.9 HP / 2400 rpm

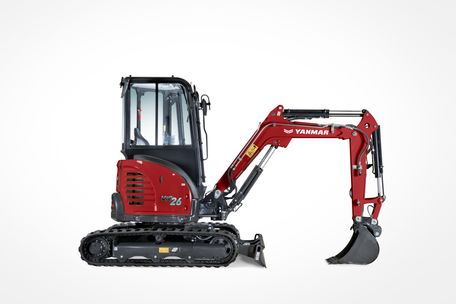

Yanmar VIO26

Yanmar VIO26 Brochure
OPERATING WEIGHT                  2560 kg [Canopy]2665 kg [Cabin]
TRANSPORT DIMENSIONS        4110 x 1500 x 2530 mm
DIGGING DEPTH                         2940 mm [long arm]
DUMPING HEIGHT                      2990 mm [long arm]
REAR SWING RADIUS                 750 mm
DIGGING FORCE (ARM/BUCKET)  14,5 / 24,5 kN
TRAVELLING SPEED                     2.8 – 4.5 km/h
YANMAR DIESEL ENGINE   3 cylinders, 1115 cm³15.2 kW / 20.7 HP / 2500 rpm

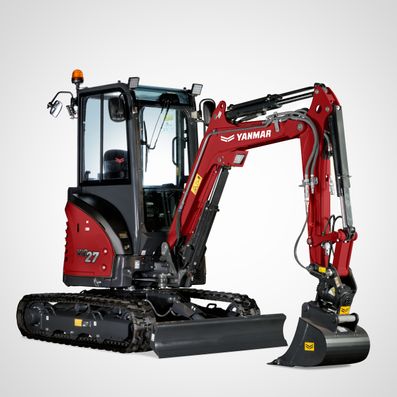

Yanmar VIO27

OPERATING WEIGHT                    2745 kg [Cabin]

TRANSPORT DIMENSIONS          4110 x 1500 x 2530 mm
DIGGING DEPTH                           2940 mm [long arm]
DUMPING HEIGHT                       2985 mm [long arm]
REAR SWING RADIUS                   750 mm
DIGGING FORCE (ARM/BUCKET)12.7 / 23.1 kN
TRAVELLING SPEED                     2.8 – 4.5 km/h
YANMAR DIESEL ENGINE            3 cylinders, 1115 cm³15.2 kW / 20.7 HP / 2500 rpm

Yanmar VIO27 Brochure

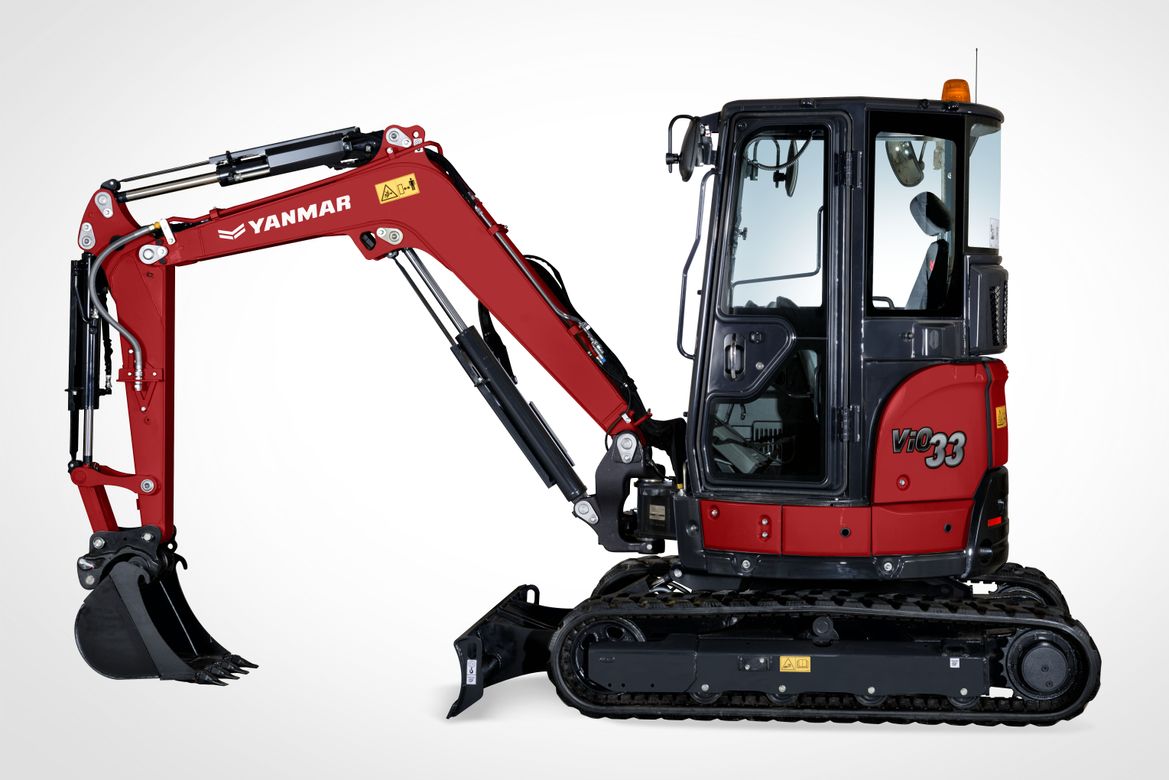

Yanmar VIO33-6

Yanmar VIO33-6
OPERATING WEIGHT

3.155 kg [rubber crawlers / canopy]

3.255 kg [steel crawlers / canopy]

3.275 kg [rubber crawlers / cabin]

3.375 kg [steel crawlers / cabin]

TRANSPORT DIMENSIONS

24.510 x 1.550 x 2.460 mm

DIGGING DEPTH

2.950 mm [short arm]

3.190 mm [long arm]

3.160 mm [short arm]

DUMPING HEIGHT

3.330 mm [long arm]


REAR SWING RADIUS

775 mm

DIGGING FORCE (ARM/BUCKET)

16,1 / 29,9 kN

TRAVELLING SPEED

2,7 - 4,5


3 cylinders, 1642 cm³

YANMAR DIESEL ENGINE

18.9 kW / 25.3 HP / 2200 rpm

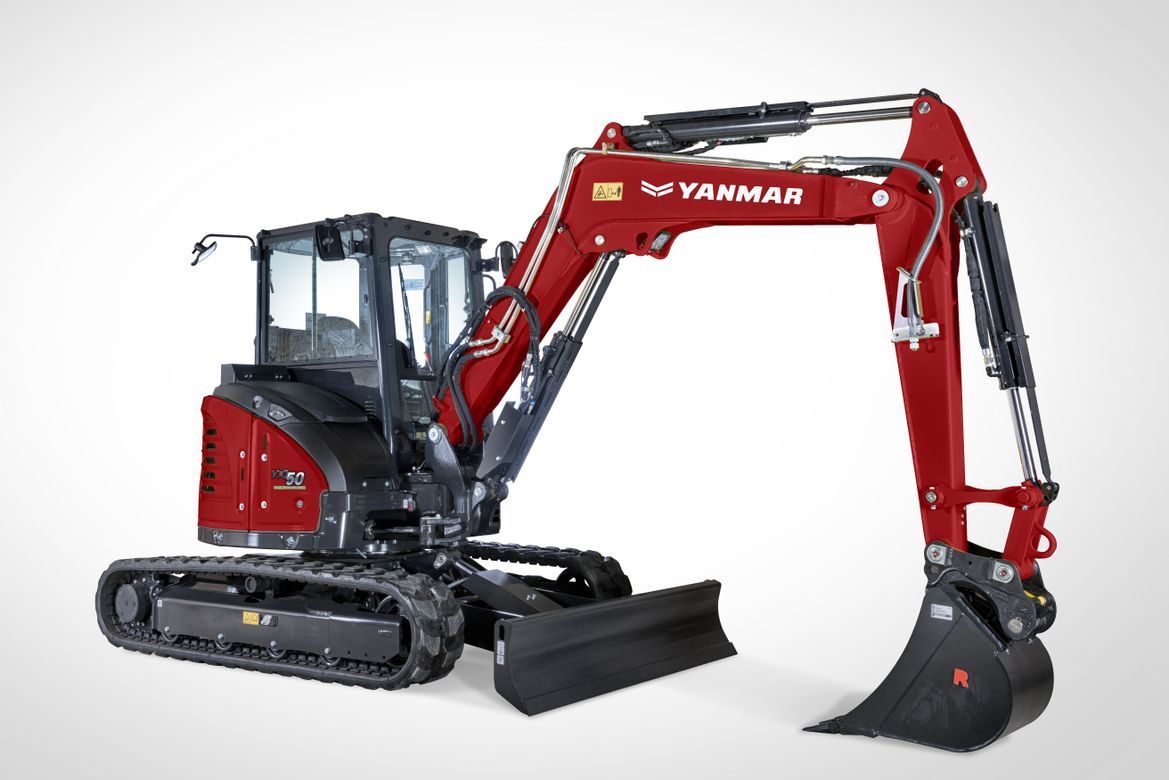

Yanmar VIO50-6

Yanmar VIO50-6
OPERATING WEIGHT

4855 kg [rubber crawlers]

TRANSPORT DIMENSIONS

4985 kg [steel crawlers]

5230 x 1970 x 2540 mm

3540 mm

DIGGING DEPTH

3790 mm [Long arm]

3870 mm

DUMPING HEIGHT

4000 mm [Long arm]

REAR SWING RADIUS

970 mm

DIGGING FORCE (ARM/BUCKET)

22,7 / 36,5 kN

TRAVELLING SPEED

2.4 - 4.6 km/h


4 cylinders, 2189 cm³

YANMAR DIESEL ENGINE

27.3 kW / 2200 rpm

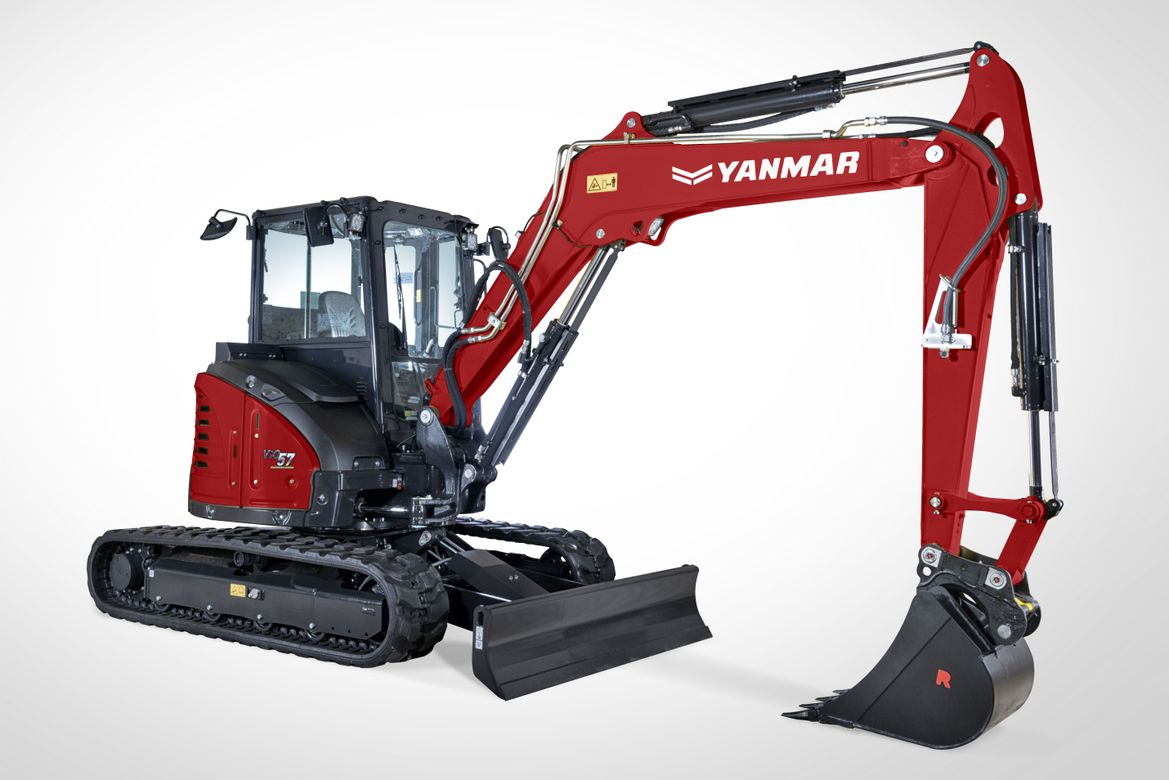

Yanmar VIO57-6

Yanmar VIO57-6​
OPERATING WEIGHT

5485 kg [rubber crawlers]

TRANSPORT DIMENSIONS

5515 kg [steel crawlers]

5510 x 1990 x 2540 mm

3710 mm

DIGGING DEPTH

4000 mm [Long arm]

4240 mm

DUMPING HEIGHT

4420 mm [Long arm]

REAR SWING RADIUS

995 mm

DIGGING FORCE (ARM/BUCKET)

24.4 / 41.9 kN

TRAVELLING SPEED

2.2 - 4.4 km/h


4 cylinders, 1995 l

YANMAR DIESEL ENGINE

32,6 kW / 2200 rpm

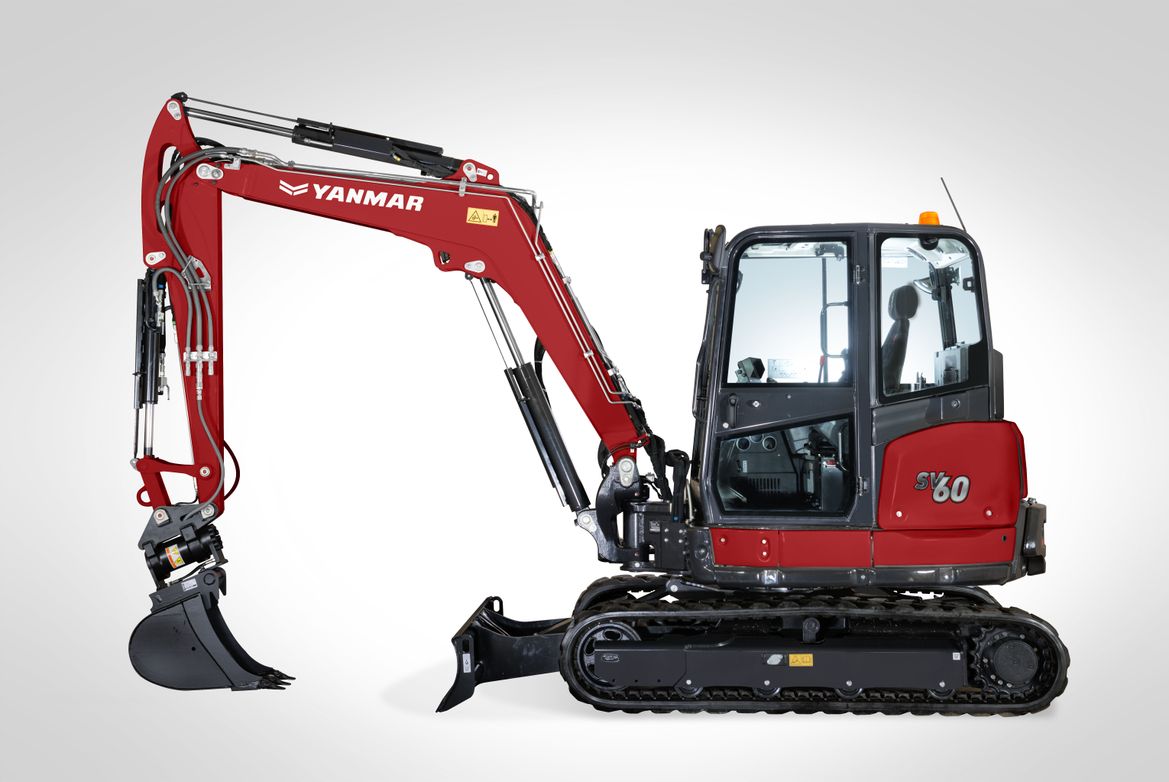

Yanmar SV60

Yanmar SV60
OPERATING WEIGHT

5635 kg [rubber crawlers]

5665 kg [steel crawlers]

TRANSPORT DIMENSIONS

5675 x 1990 x 2540 mm

3650 mm

DIGGING DEPTH

3945 mm [long arm]

4280 mm

DUMPING HEIGHT

4460 mm [long arm]

REAR SWING RADIUS

1325

DIGGING FORCE (ARM/BUCKET)

24.8 kN / 41.9 kN

TRAVELLING SPEED

2.2 - 4.7 km/h



4 cylinders

YANMAR DIESEL ENGINE

33.4 kW / 45.4 CV / 2200 rpm



Yanmar SV60 Brochure

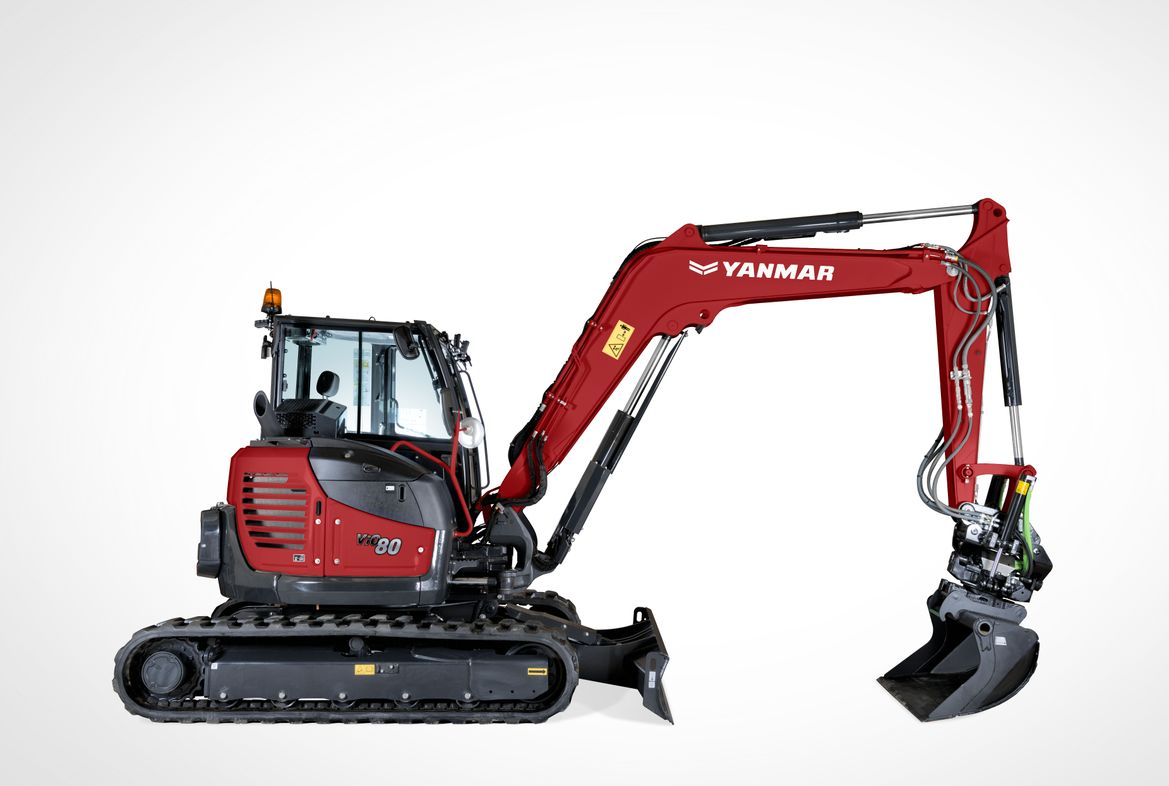

Yanmar VIO80

Yanmar VIO80
OPERATING WEIGHT

8065 kg [rubber crawlers]

TRANSPORT DIMENSIONS

8125 kg [steel crawlers]

6450 x 2270 x 2710 mm

4130 mm

DIGGING DEPTH

4500 mm [long arm]

4700 mm

DUMPING HEIGHT

4950 mm [long arm]

REAR SWING RADIUS

1135 mm

DIGGING FORCE (ARM/BUCKET)

40.8 kN / 63.5 kN

TRAVELLING SPEED

2.5 - 4.5 km/h


4 cylinders, 3318 cm³

YANMAR DIESEL ENGINE

40.7 kW / 55.3 HP / 2000 rpm
